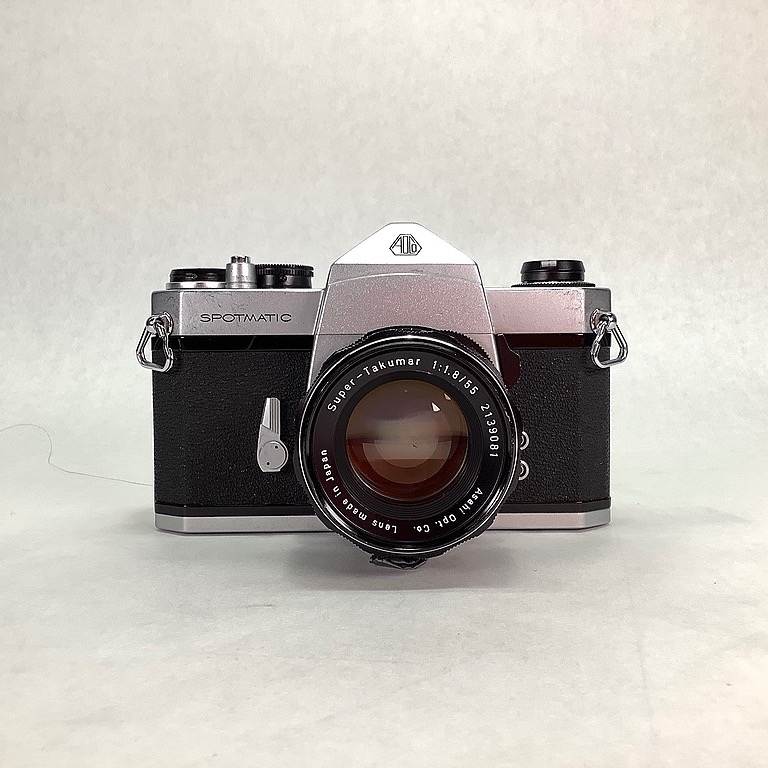

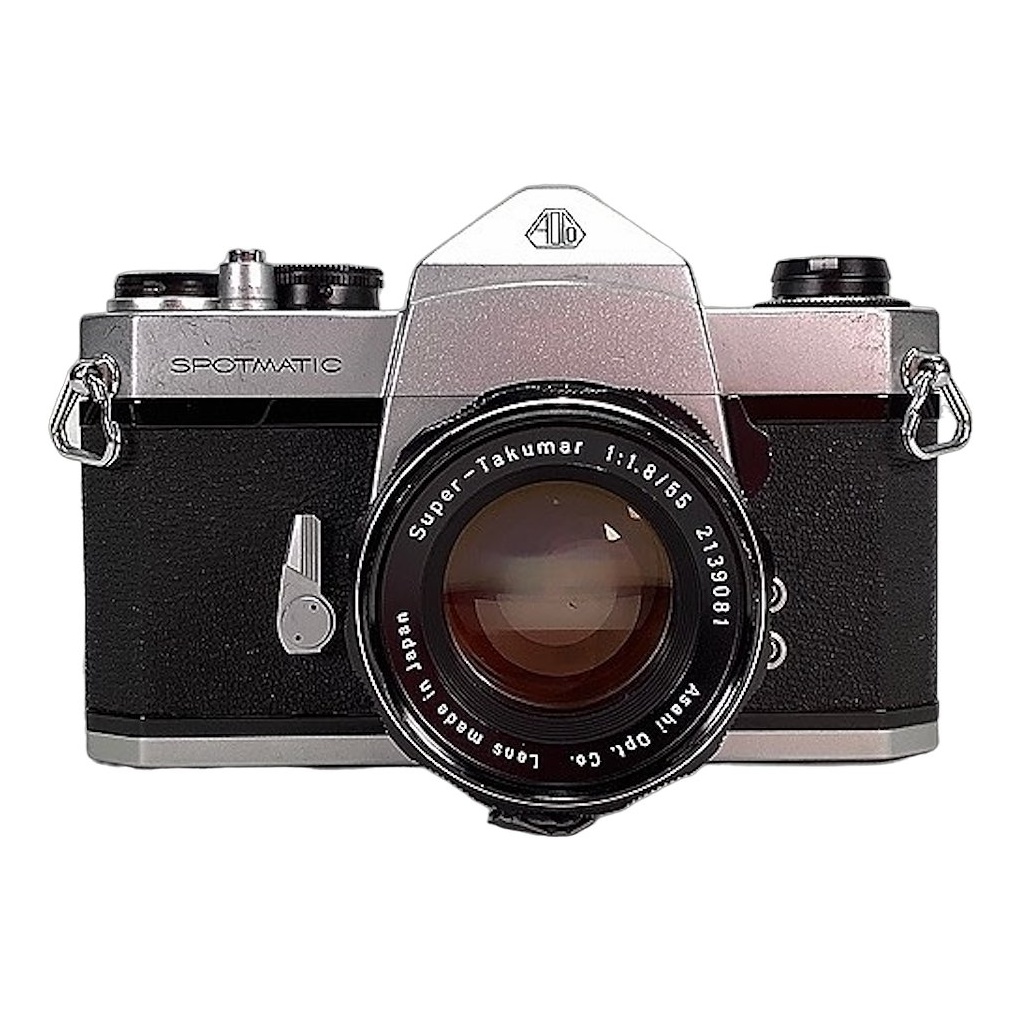

Honeywell Pentax Spotmatic - Circa 1964

The Pentax Spotmatic refers to a family of 35mm single-lens reflex cameras manufactured by the Asahi Optical Co. Ltd., later known as Pentax Corporation, between 1964 and 1976. Honeywell was the U.S. importer of the Spotmatic. Cameras officially imported by Honeywell were labeled Honeywell Pentax, instead of Asahi Pentax. The Spotmatic IIa was only available as a Honeywell Pentax; it was sold exclusively in the USA and had an electronic interface for specific Honeywell Strobonar electronic flash units.

The original 1964 Spotmatic was one of the first SLRs on the market to offer a through-the-lens (TTL) exposure metering system. The camera was presented as a prototype at photokina 1960, and was originally designed to use spot metering. Shortly before production Asahi decided that spot metering would be too difficult to use, and so the metering system was altered to use Centre-weighted-average metering. The change took place too close to production to change the name, and so Spotmatic stuck. The camera had a mechanical shutter with speed range from 1000 to 1 and Bulb. The light meter is activated by a lever on the side of the camera, which also stopped down the lens. Mercury battery (1.35 V Mallory RM640) was used to power the light metering system; however due to the way the circuit is designed, silver oxide batteries can be used instead.

Honeywell Pentax Spotmatic SP
